ORO-URAN-DW

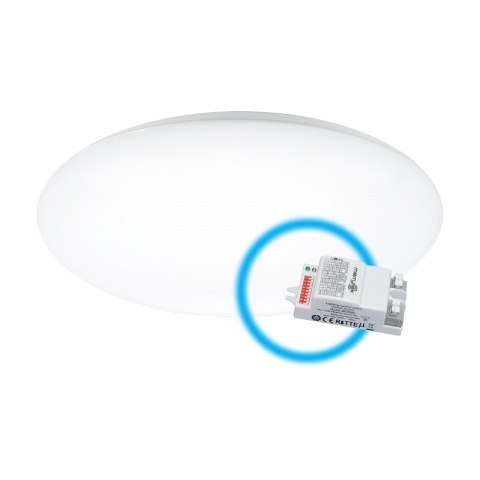

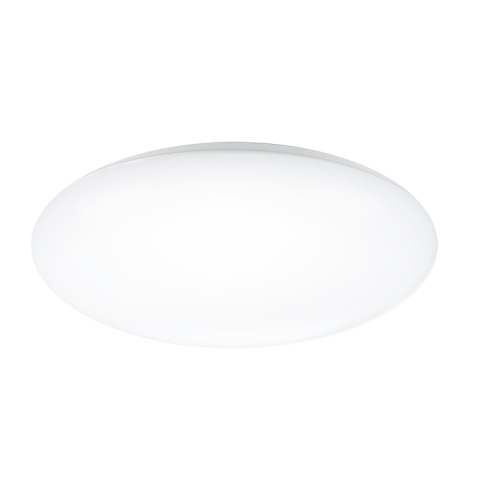

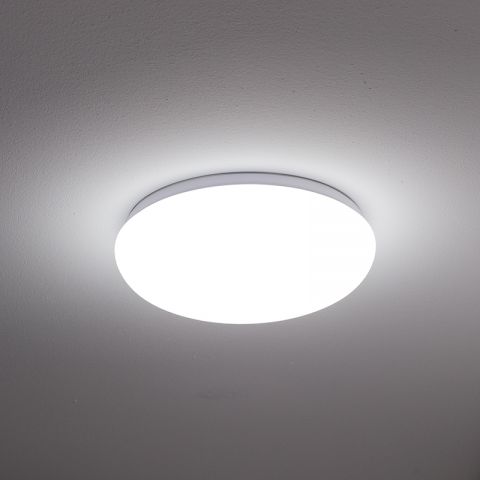

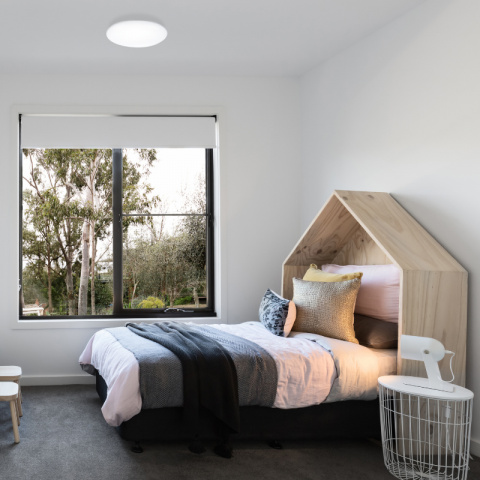

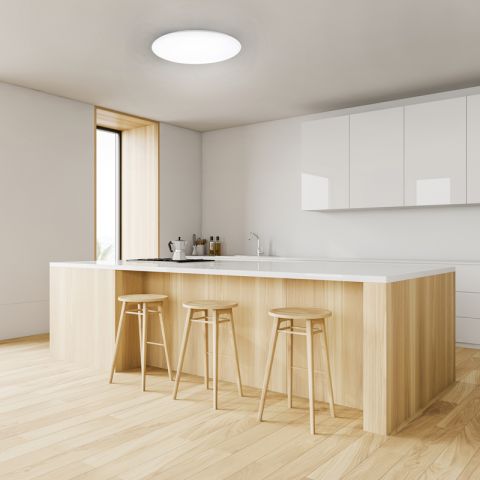

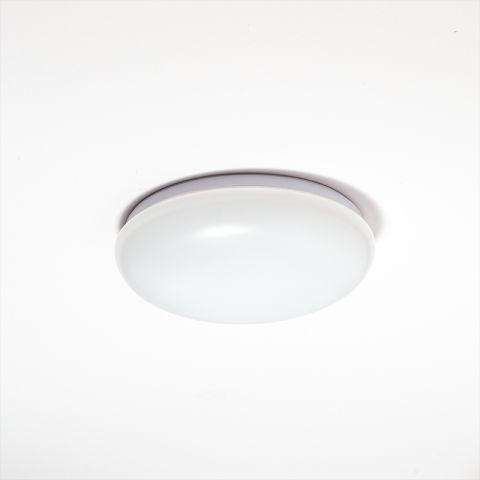

A line of modern plafonds with an integrated LED light source in a choice of three wattages. With their classic shape, universal daylight color and high IP, the plafonds can be used as aesthetically pleasing yet energy-efficient lighting for any room. Selected models are distinguished by the use of a MERRYTEK microwave motion and twilight sensor with a five-stage adjustment of operating time and sensitivity, as well as a five-stage adjustment of twilight sensor ranges. An additional advantage of the sensor, useful in illuminating passageways, is switch-type adjustment, allowing multiple sensors to be set in the same way.

Application

Oświetlenie biur, hal magazynowych, produkcyjnych, budynków użyteczności publicznej, korytarzy i garaży.

Files to download

Product catalog Data sheet Catalog - Plafonds Installation instructions Declaration of compliance Energy label Hygienic certificate

Name	Index	EAN code	P [W]	Ф Module [lm]	Ф Light fixture [lm]	n [lm/W]		∢ [°]	Dimension [mm]	Weight [g]

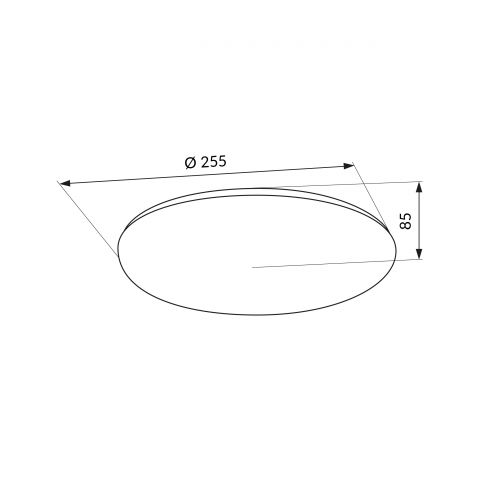

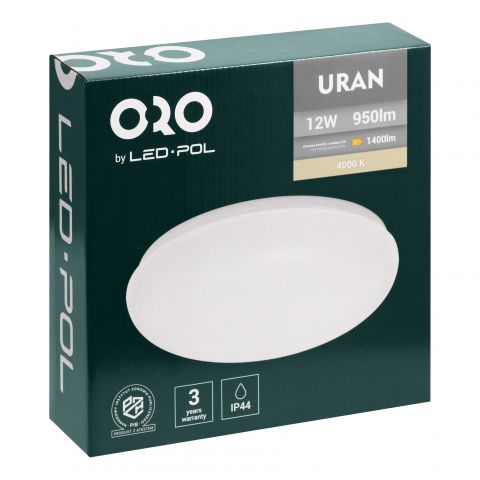

ORO-URAN-12W-DW	ORO26006	5902533191932	12W	1550lm	960lm Ф360°	80lm/W	4000	120	ø 219 x 70	260

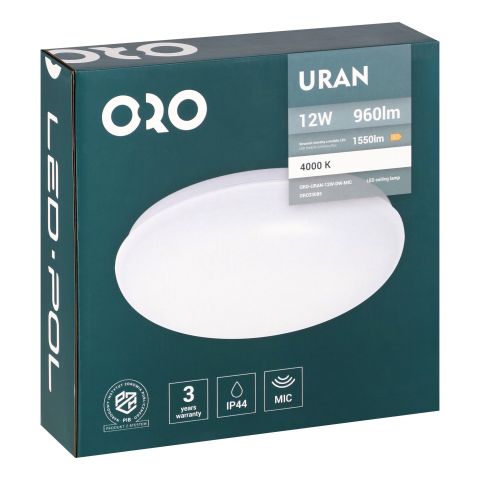

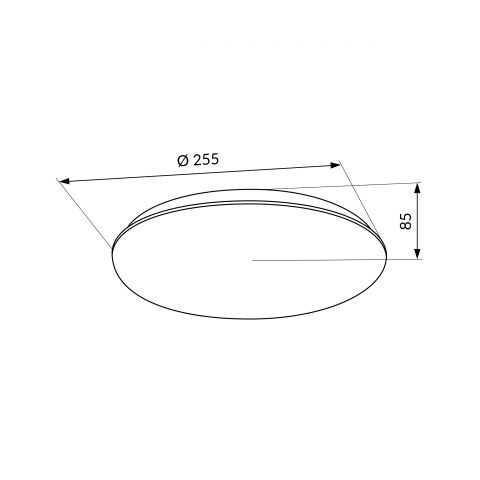

ORO-URAN-12W-DW-MIC	ORO33085	5901752711044	12	1550lm	960lm Ф360°	80lm/W	4000K	140°	ø 219 x 70	290

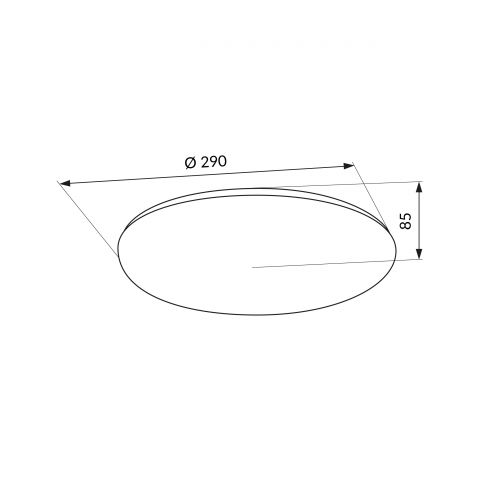

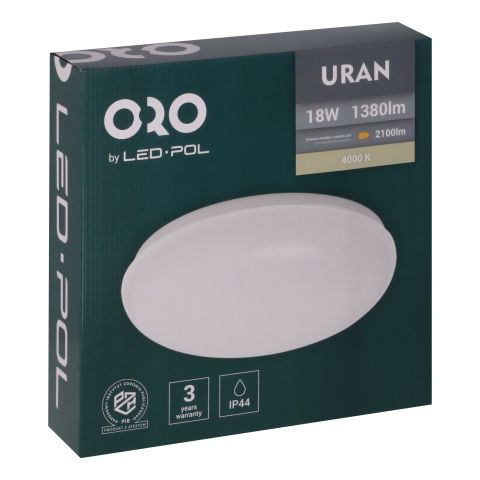

ORO-URAN-18W-DW	ORO26007	5902533191949	18W	2200lm	1440lm Ф360°	80lm/W	4000	120	ø 267 x 85	390
ORO-URAN-18W-DW-MIC	ORO26008	5902533191956	18W	2200lm	1440lm Ф360°	80lm/W	4000	120	ø 267 x 85	410

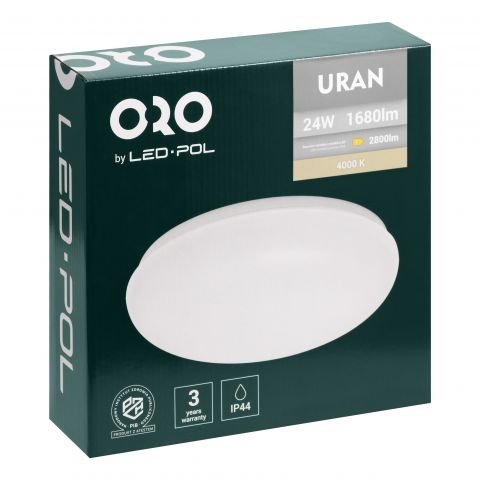

ORO-URAN-24W-DW	ORO26009	5902533193936	24W	2800lm	1800lm Ф360°	75lm/W	4000	120	ø 306 x 95	460

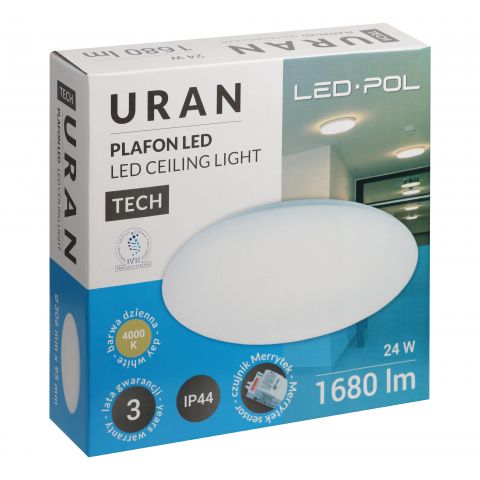

ORO-URAN-24W-DW-MIC	ORO26010	5902533193943	24W	2800lm	1800lm Ф360°	75lm/W	4000K	140°	ø 306 x 95	480
